Aftermarket Advance 56385306 | Offboard Charger | 36V | 20 AMPs | SB50 Connector Red and Grey

 More payment options

Machine Fitment

DS 66 Autoscrubber (250 AH Batteries), DS 66 Autoscrubber (330 AH Batteries), DS 66 Autoscrubber (370 AH Batteries), DS 81 Autoscrubber (250 AH Batteries), DS 81 Autoscrubber (330 AH Batteries), DS 81 Autoscrubber (370 AH Batteries), Image 26B, Image 26B, Mini-Max 26, Mini-Max 28, Mini-Max 30, Vision 26I, Vision 26IX, Vision 32I, Vision 32IX, Vision 38I

Item Number Matches

Description
Aftermarket Advance 56385306
Machine Fitment

DS 66 Autoscrubber (250 AH Batteries), DS 66 Autoscrubber (330 AH Batteries), DS 66 Autoscrubber (370 AH Batteries), DS 81 Autoscrubber (250 AH Batteries), DS 81 Autoscrubber (330 AH Batteries), DS 81 Autoscrubber (370 AH Batteries), Image 26B, Image 26B, Mini-Max 26, Mini-Max 28, Mini-Max 30, Vision 26I, Vision 26IX, Vision 32I, Vision 32IX, Vision 38I

Description

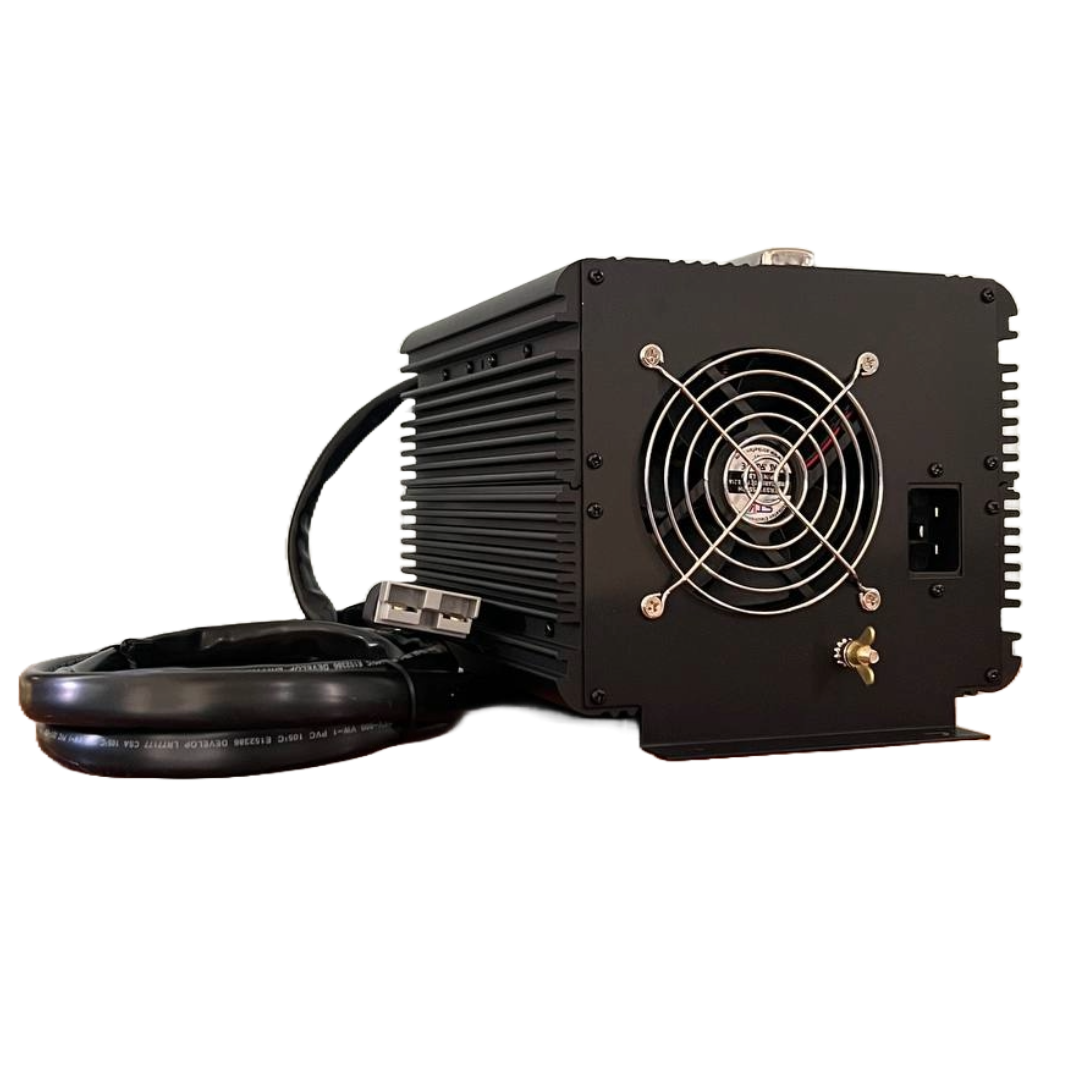

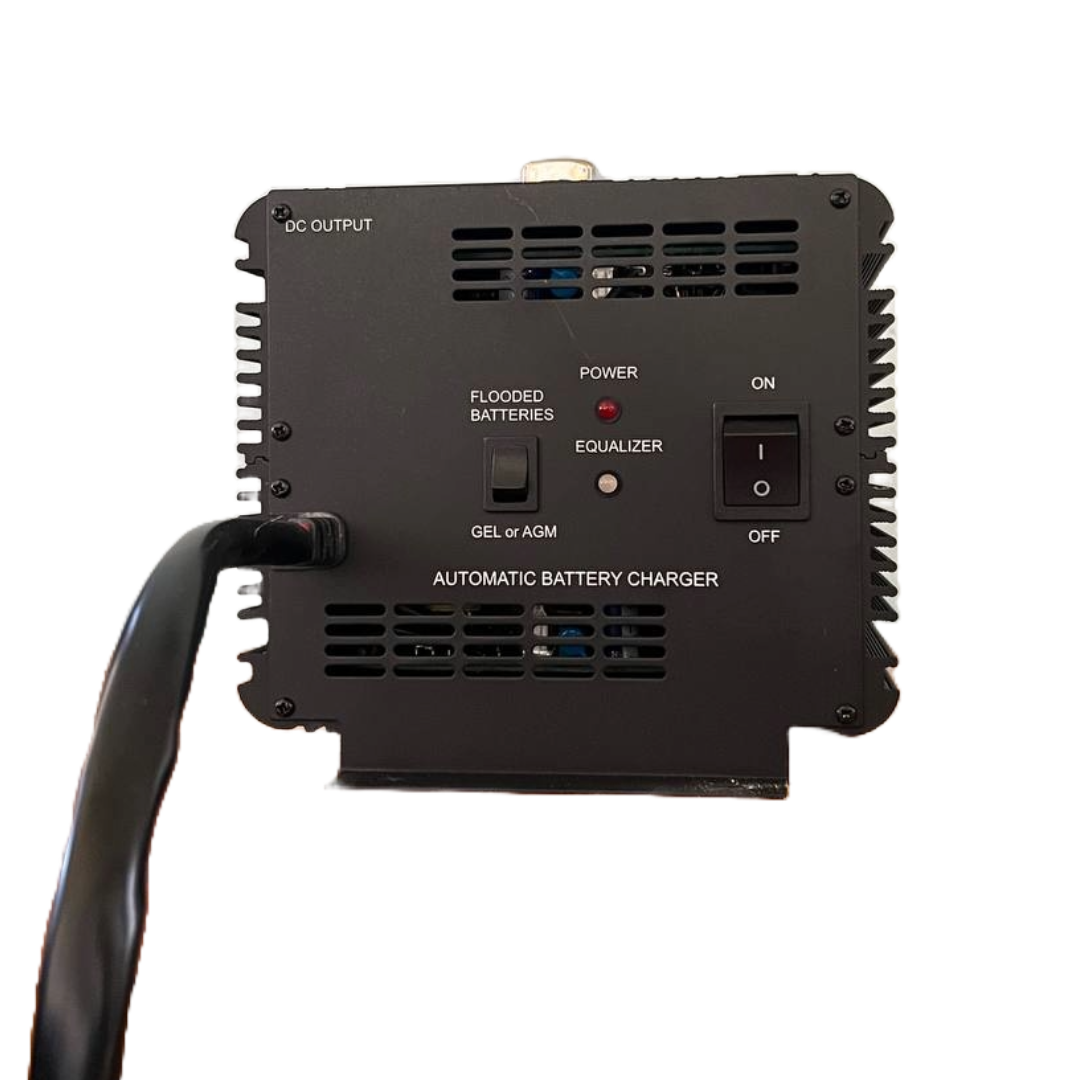

Offboard charger comes out of the box with the SB50 grey Anderson Connector pre-assembled, there is also a SB50 red Anderson Connector included in the box as well. Charger comes pre-programmed at "wet" battery setting, but it is the customer's responsibility to verify their machine's battery type before setting the charger profile on the charger itself.
AC Input
  • Input Voltage (auto-sensing): 115/230 VAC, 50/60 Hz
  • Input Current Max: 14 Amps
  • Single Phase
  • Input Receptacle: IEC C14
DC Output
  • Output Voltage - Nominal: 36 VDC
  • Output Voltage - Bulk / Cyclic: 44.6 VDC
  • Float Voltage: 43.2 VDC
  • Max DC Current: 20 Amps
  • Battery Type: Lead Acid: Standard, AGM, Gel
  • 3 Stage Charging Profile: CC/CV/Float
  • Load Sensing, Minimum Voltage: 12 Volts
Features
  • Cooling Fan
  • Reverse Polarity Protection
  • High Energy Efficiency (UEC, BC)
  • Voltage Limited
  • Current Limited
  • Over Voltage Protection
  • Over Temperature Protection
  • Short Circuit Protection
  • Final Float / Maintenance Mode
  • Aluminum Case
  • Mounting Flanges
  • On / Off Switch
  • DC Output Cord 8ft w/ Anderson SB50 Grey Connector
  • Two-year Limited Warranty
