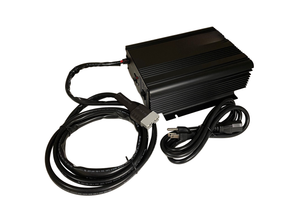

Aftermarket Advance 56383075 | Offboard Charger | 24V | 20 AMPs | SB50 Connector Red and Grey

Aftermarket Advance 56383075 | Offboard Charger | 24V | 20 AMPs | SB50 Connector Red and Grey

$479.00

Aftermarket Advance 56383075
Machine Fitment	Clarke Boost 28/32, Encore L2426, Encore L30, S20, L20, S2426, S30, Vantage 17B, 20B

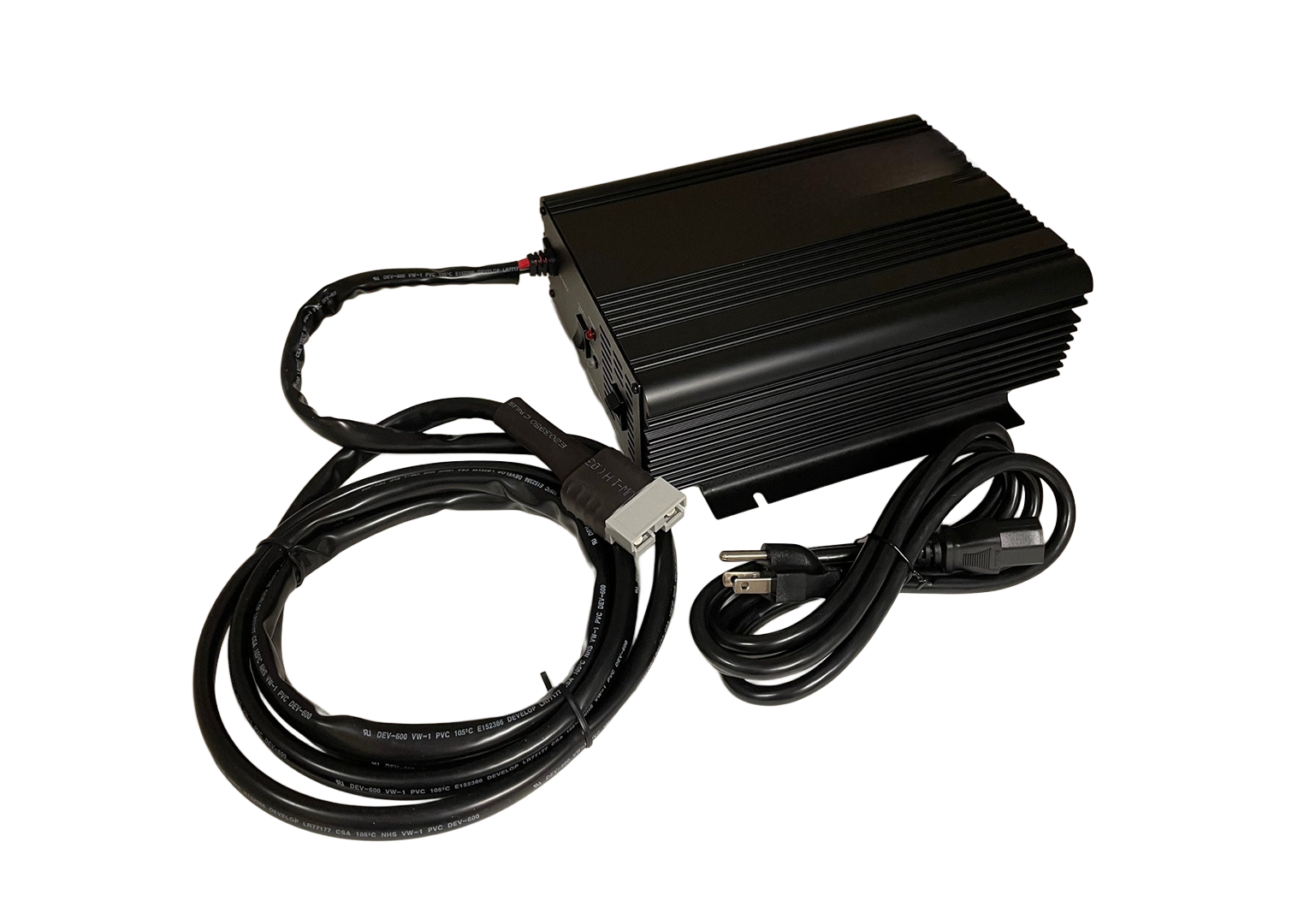

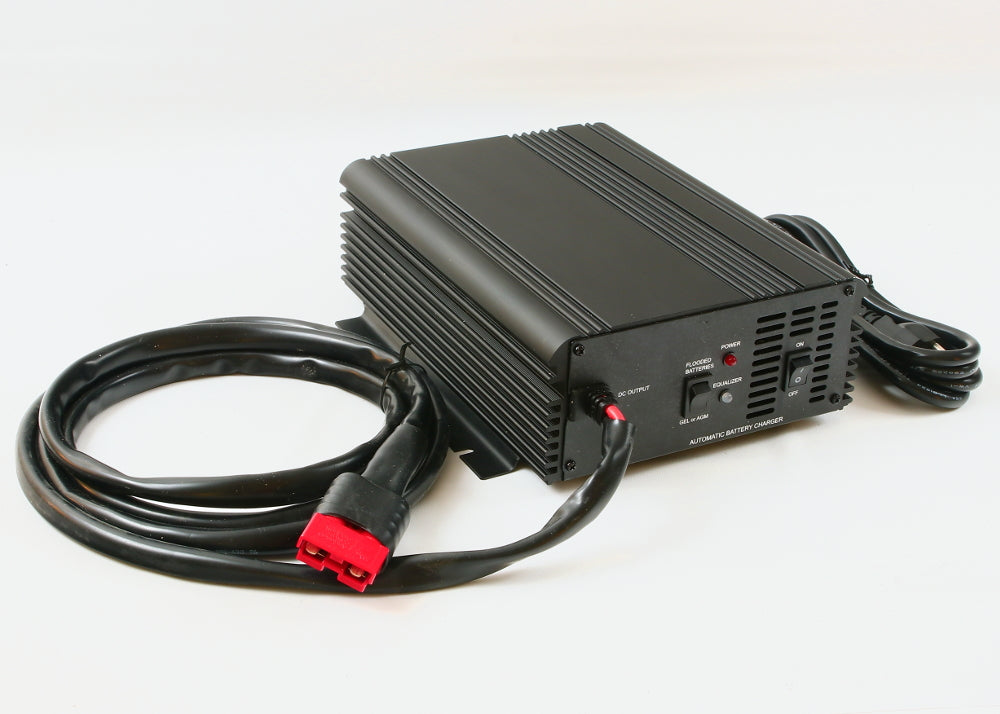

Description	Offboard charger comes out of the box with the SB50 grey Anderson Connector pre-assembled, there is also a SB50 red Anderson Connector included in the box as well. Charger comes pre-programmed at "wet" battery setting, but it is the customer's responsibility to verify their machine's battery type before setting the charger profile on the charger itself.
AC Input	Input Voltage (auto-sensing): 100-240 VAC, 50/60 Hz Input Current Max: 11 Amps Single Phase Input Receptacle: IEC C14
DC Output	Output Voltage - Nominal: 24 VDC Output Voltage - Flooded: 29.7 VDC Output Voltage - AGM / Gel: 28.8 VDC Float Voltage: 26.5 VDC Max DC Current: 20 Amps Battery Type: Lead Acid, AGM, Gel 3 Stage Charging Profile: CC/CV/Float Load Sensing, Minimum Voltage: 8 Volts
Features	Charger Ships with 6 foot lead with SB 50 Connector Selectable Charging Profile: Flooded, AGM or GEL Low start voltage 4 volts Continuous 100% duty cycle Optimal 3 Step Charging Built-in Mode Indicators Demand Sensing Reverse Polarity Protection Over Voltage Protected Short Circuit Protection Overload Protection Thermal Protection 2 Year Warranty

Machine Fitment

Item Number Matches

Description

Description

Aftermarket Advance 56383075
Machine Fitment	Clarke Boost 28/32, Encore L2426, Encore L30, S20, L20, S2426, S30, Vantage 17B, 20B
Description	Offboard charger comes out of the box with the SB50 grey Anderson Connector pre-assembled, there is also a SB50 red Anderson Connector included in the box as well. Charger comes pre-programmed at "wet" battery setting, but it is the customer's responsibility to verify their machine's battery type before setting the charger profile on the charger itself.
AC Input	Input Voltage (auto-sensing): 100-240 VAC, 50/60 Hz Input Current Max: 11 Amps Single Phase Input Receptacle: IEC C14
DC Output	Output Voltage - Nominal: 24 VDC Output Voltage - Flooded: 29.7 VDC Output Voltage - AGM / Gel: 28.8 VDC Float Voltage: 26.5 VDC Max DC Current: 20 Amps Battery Type: Lead Acid, AGM, Gel 3 Stage Charging Profile: CC/CV/Float Load Sensing, Minimum Voltage: 8 Volts
Features	Charger Ships with 6 foot lead with SB 50 Connector Selectable Charging Profile: Flooded, AGM or GEL Low start voltage 4 volts Continuous 100% duty cycle Optimal 3 Step Charging Built-in Mode Indicators Demand Sensing Reverse Polarity Protection Over Voltage Protected Short Circuit Protection Overload Protection Thermal Protection 2 Year Warranty

This product is part of the following parts collections:

Aftermarket Advance 56383075

Machine Fitment

Clarke Boost 28/32, Encore L2426, Encore L30, S20, L20, S2426, S30, Vantage 17B, 20B

Description

Offboard charger comes out of the box with the SB50 grey Anderson Connector pre-assembled, there is also a SB50 red Anderson Connector included in the box as well. Charger comes pre-programmed at "wet" battery setting, but it is the customer's responsibility to verify their machine's battery type before setting the charger profile on the charger itself.

AC Input

Input Voltage (auto-sensing): 100-240 VAC, 50/60 Hz
Input Current Max: 11 Amps
Single Phase
Input Receptacle: IEC C14

DC Output

Output Voltage - Nominal: 24 VDC
Output Voltage - Flooded: 29.7 VDC
Output Voltage - AGM / Gel: 28.8 VDC
Float Voltage: 26.5 VDC
Max DC Current: 20 Amps
Battery Type: Lead Acid, AGM, Gel
3 Stage Charging Profile: CC/CV/Float
Load Sensing, Minimum Voltage: 8 Volts

Features

Charger Ships with 6 foot lead with SB 50 Connector

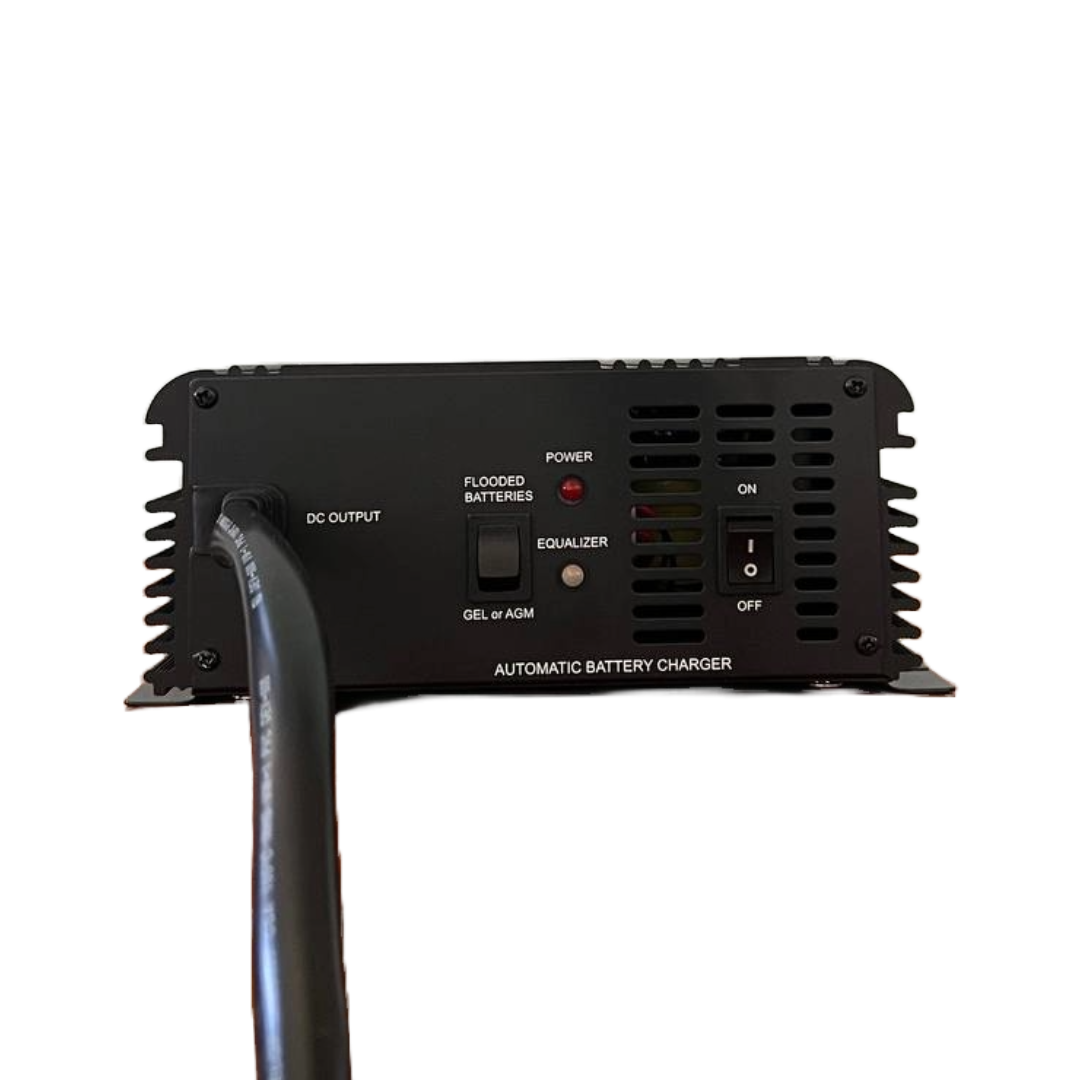

Selectable Charging Profile: Flooded, AGM or GEL
Low start voltage 4 volts
Continuous 100% duty cycle
Optimal 3 Step Charging
Built-in Mode Indicators
Demand Sensing
Reverse Polarity Protection
Over Voltage Protected
Short Circuit Protection
Overload Protection
Thermal Protection
2 Year Warranty
