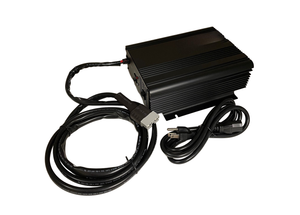

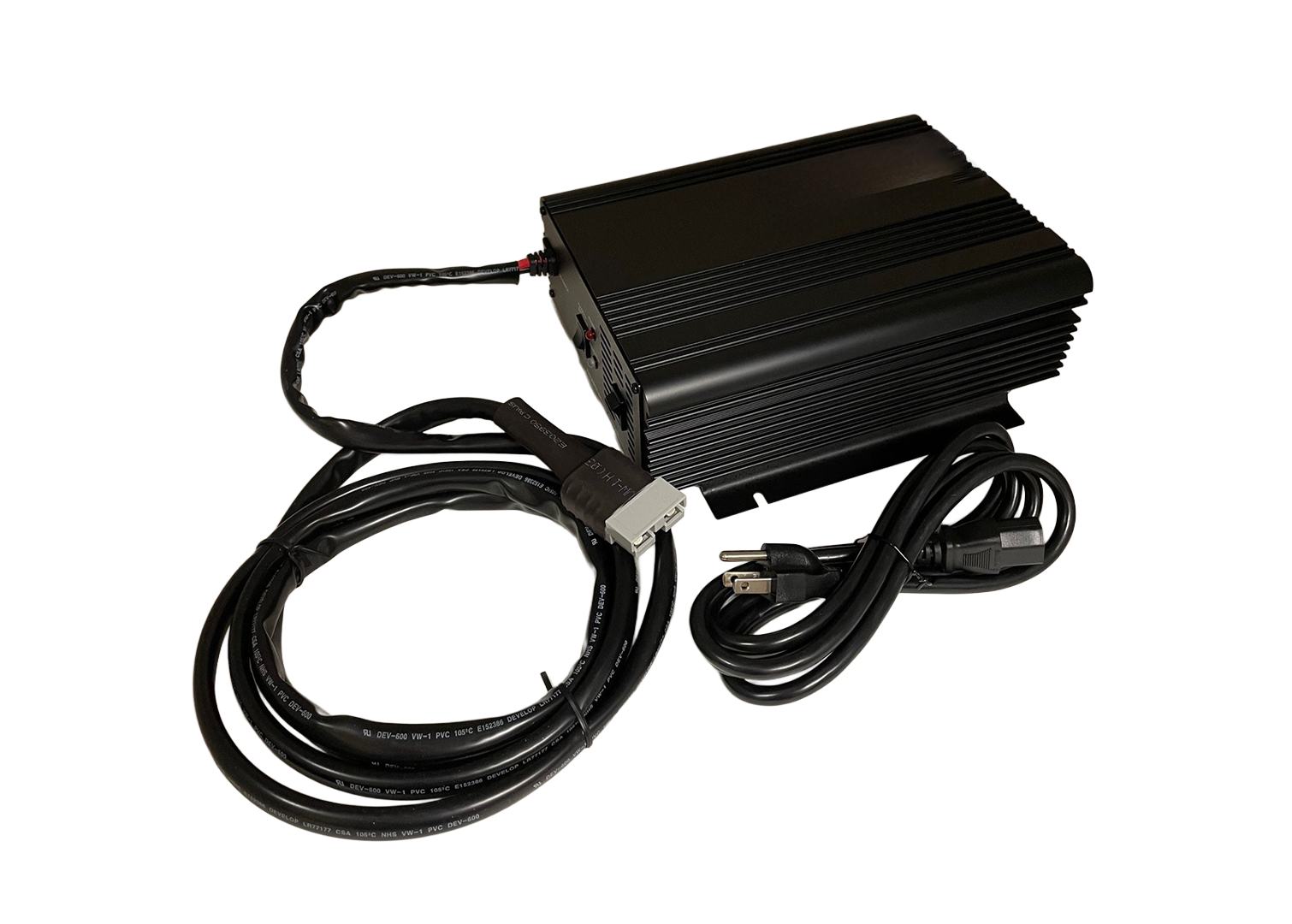

Aftermarket Advance 56382998 | Offboard Charger | 24V | 20 AMPs | SB175 Connector Red and Grey

 More payment options

Machine Fitment

Item Number Matches

Description
Aftermarket Advance 56382998
Machine Fitment

2800D ST, 2800D-C ST, 3400D ST, 3400D-C ST, Advenger 2805C-C, Advenger 2805C, Advenger 2805D-C, Advenger 2805D, Advenger 3405D-C, Advenger 3405D, Advenger X2805C-C, Advenger X2805C, Advenger X2805D-C, Advenger X2805D, Advenger X2805R-C, Advenger X2805R, Advenger X3405D-C, Advenger X3405D, Convertamatic 200B, Convertamatic 200BD, Convertamatic 200LX, Convertamatic 20B, Convertamatic 21B, Convertamatic 24B, Convertamatic 24C-C, Convertamatic 24D-C, Convertamatic 265LX, Convertamatic 26B, Convertamatic 26C-C, Convertamatic 26D, Convertamatic 28C-C, Convertamatic 28D, Convertamatic 32D-C, Convertamatic X24C-C, Convertamatic X24D-C, Convertamatic X26C-C, Convertamatic X26D-C, Convertamatic X28C-C, Convertamatic X28D-C, Convertamatic X32D-C, ConvertaMAX 20, ConvertaMAX 26, Hydro-Retriever 260BHD, Hydro-Retriever 265HD, Retriever 265HD, Retriever 360B, Retriever 4000B, Roamer 320B, SC1500 X20D, SC1500 X20R, Trac 240, Advance SC1500, Advance 2800ST, Advance 3400ST, Advance Advenger 2600, Advance SC750, Advance SC800, Advance Terra 5200B

Description

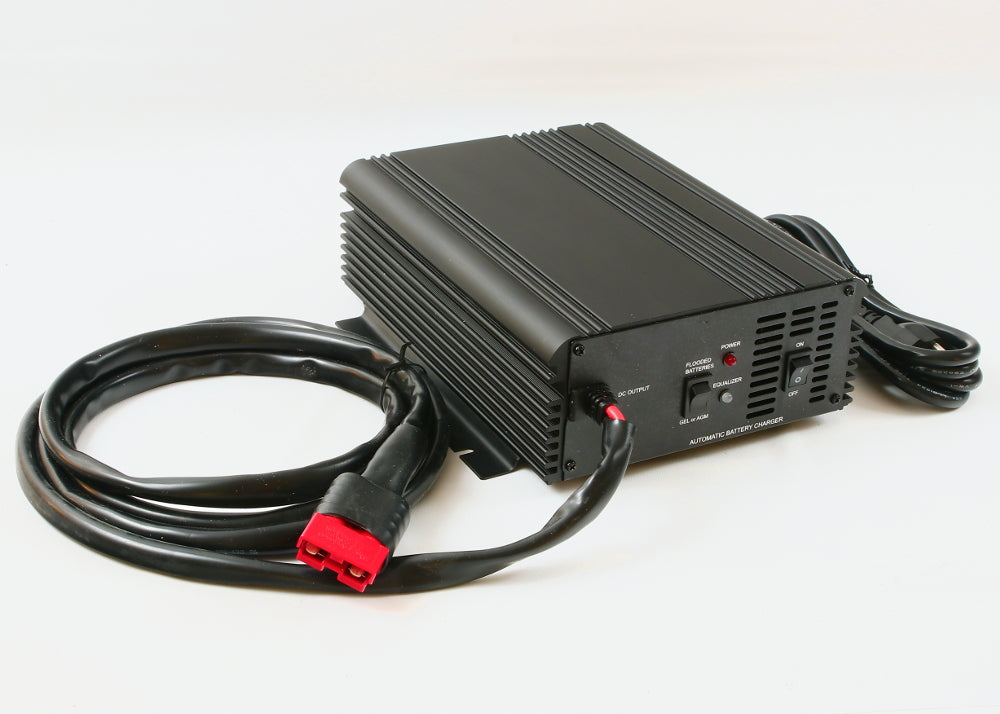

Offboard charger comes out of the box with the SB175 red Anderson Connector pre-assembled, there is also a SB175 grey Anderson Connector included in the box as well. Charger comes pre-programmed at "wet" battery setting, but it is the customer's responsibility to verify their machine's battery type before setting the charger profile on the charger itself.
AC Input
  • Input Voltage (auto-sensing): 100-240 VAC, 50/60 Hz
  • Input Current Max: 11 Amps
  • Single Phase
  • Input Receptacle: IEC C14
DC Output
  • Output Voltage - Nominal: 24 VDC
  • Output Voltage - Flooded: 29.7 VDC
  • Output Voltage - AGM / Gel: 28.8 VDC
  • Float Voltage: 26.5 VDC
  • Max DC Current: 20 Amps
  • Battery Type: Lead Acid, AGM, Gel
  • 3 Stage Charging Profile: CC/CV/Float
  • Load Sensing, Minimum Voltage: 8 Volts
Features
  • Charger Ships with 6 foot lead with SB175 Connector

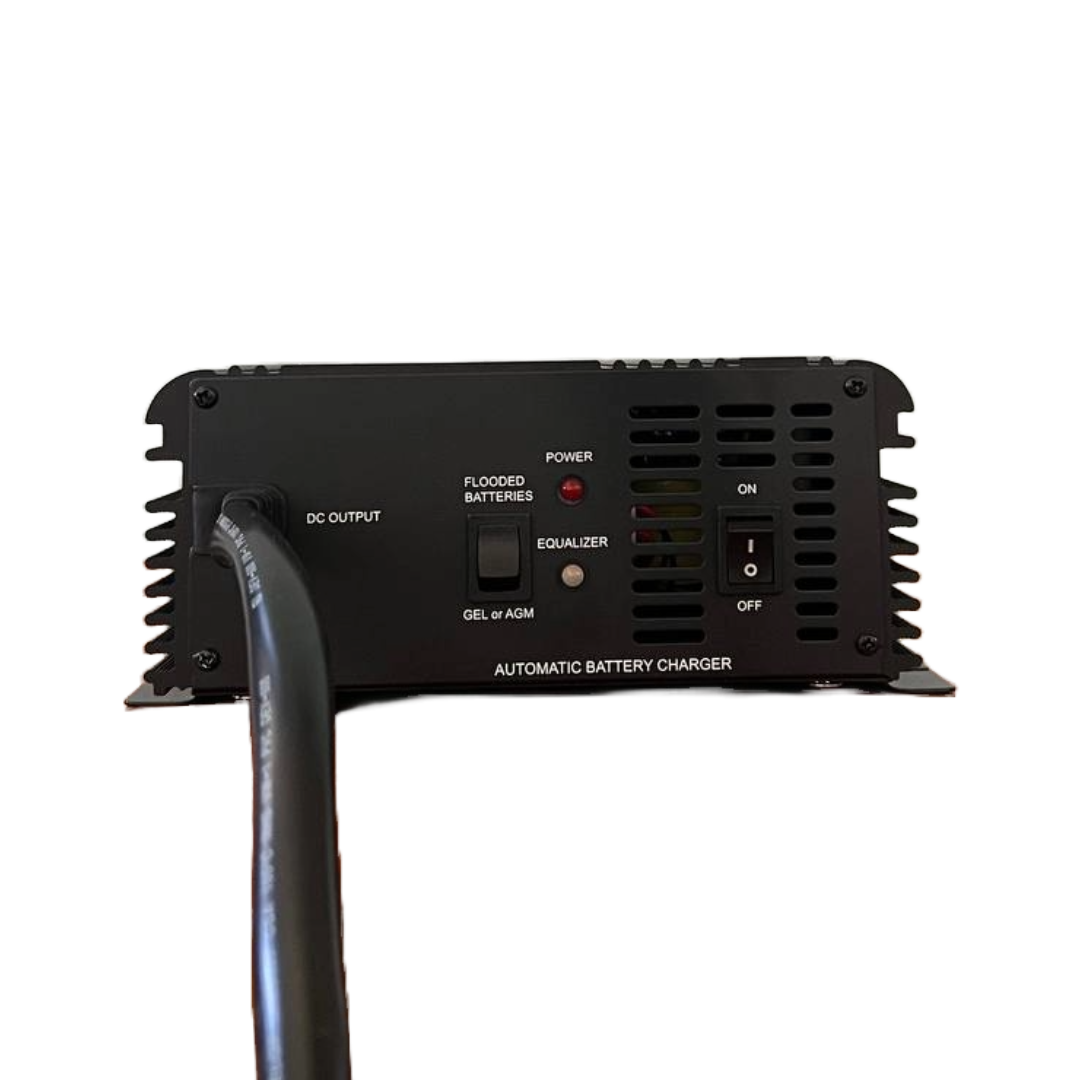

  • Selectable Charging Profile: Flooded, AGM or GEL
  • Low start voltage 4 volts
  • Continuous 100% duty cycle
  • Optimal 3 Step Charging
  • Built-in Mode Indicators
  • Demand Sensing
  • Reverse Polarity Protection
  • Over Voltage Protected
  • Short Circuit Protection
  • Overload Protection
  • Thermal Protection
  • 2 Year Warranty
