Viper AS6690T 26" Disc Walk-Behind Floor Scrubber
Viper AS6690T 26" Disc Walk-Behind Floor Scrubber
Viper AS6690T 26" Disc Walk-Behind Floor Scrubber
Viper AS6690T 26" Disc Walk-Behind Floor Scrubber

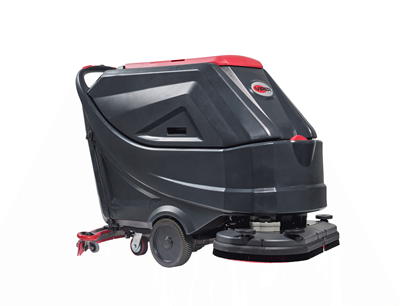

Viper AS6690T 26" Disc Walk-Behind Floor Scrubber (AS6690T)

When hard flooring needs a bit of extra effort to get the best results, the Viper AS series is ready to make the difference, with dual-brush or orbital-deck models for applications ranging from heavy-duty scrubbing to surface-stripping.

Easy operation, high tank capacity, and the resource-efficiency needed to get the job done quickly and effectively make the intuitive AS models an ideal match for cleaning programs that need consistent results across medium- and large-sized spaces.

  • Adjustable brush-pressure settings make it easy to handle all kinds and levels of dirt
  • Solution-flow management ensures optimal control of detergent dosage
  • Eco and Silent modes make it easy to clean over longer periods or in sound-sensitive areas
  • Easy access to solution tank, battery, and working components, with tool-free squeegee-blade removal
  • Convenient controls and LCD display for fast, effective training and operation

Technical specifications

  • Model No
    50000572
  • Solution tank (l)
    85 L / 22 Gal.
  • Recovery tank (l)
    90 L / 24 Gal.
  • Length
    1490 mm/59 Inches
  • Width with squeegee
    830 mm/33 Inches
  • Width without squeeegee
    730 mm/29 Inches
  • Height
    1020 mm / 40 Inches
  • Width
    660 mm / 26 Inches
  • Pad/Brush Size
    330 mm x 2 / 13 Inches x 2
  • Brush pressure (g/cm²)
    32 Kg /71 Lbs 41 Kg /90 Lbs 49 Kg /108 Lbs
  • Solution flow
    (0.9/1.5/2.2/3) Liters (0.24/0.39/0.58/0.79) Gallons
  • Sound pressure level (dB(A))
    69 ± 3 dB (A)
  • Sound level - silent mode
    65 ± 3 dB (A)
  • Machine speed
    0 - 4.0 Km / 0 – 2.5 Miles per hour
  • Min. aisle turn (cm)
    155cm/61 Inches
  • Battery compartment size (L x W x H)
    (620 x 385 x 390) mm / 24.4 x 15.1 x 15.3 Inches
  • Voltage (V)
    24 V
  • Cleaning productivity (max.)
    2640 m2/h
  • Gross weight (gvw) (kg)
    347 Kg / 765 Lbs.
  • Shipping weight (kg)
    202 Kg / 444 Lbs.
  • Packaging dimensions
    (1620 x 810 x 1200 mm) / (64 x 32 x 48 Inches)
  • Adjustable brush pressure
    Included
  • Click on-off brush
    Included
  • Debris tray
    Included
  • Display on machine
    Included
  • Squeezable drain hose with flow control
    Included
  • One-Touch™ Button
    Included
  • ECO mode
    Included
  • Traction drive
    Included

Parts Manual

Brochure

Fits the Following Models:
